add motor to window blinds and shades
  Bulletin - 3 Levels of Blind, Shade, & Window Control

Level 1 - RollerTrol™ Simple Remote Controls: We designed our system so that you can start out with our simple wall mount and hand held remotes for our shade/blind motors and skylight/window openers, then upgrade later to a more advanced system. Your investment is preserved as any remotes you purchase will still work, even if you upgrade to level 2 or 3 later. The remote control signals will be 'learned' and used by the higher levels of automation (see our blind & shade automation guide).

Level 2 - BroadLink® RF-IR Blaster Automation Hub: See our affordable blind and shade hub, operated by Android and IOS apps. This RF-IR blaster hub can learn RF radio signals for our blind motors and skylight/window openers and IR learning for TV. Convert old phones and tablets into WiFi home automation controllers!

Level 3 - Z-WAVE® Blind Automation: This protocol is often used in home automation systems. We have a Z-Wave interface for roller shade and blind motors, and Z-Wave control of our skylight and window opener systems. You can also add support for voice control systems such as Alexa® and Google Home®.

Mermet® Custom Shades: For those of you wanting a more complete solution, we are now offering high quality shade and blind fabrics from Mermet®, mounted on standard tubing. Our motors just slide in and lock in place - no fuss no muss! Please check our Custom Blinds and Shades website for info.

Introducing The "Mini"

mini motor for blinds and shades Many of our customers have inquired about motorizing their existing roller shades (retrofit), and we decided to meet the challenge. The latest member of our tubular motor family is our miniature 20 mm tubular motor series. You can use it to add a motor to existing roller blinds and shades.

Anytime you have a roller tube with an inside diameter of 20 mm or greater (about 0.70"), our mini motor will do the job. It also fits standard 1" aluminum tubing, if you want to make your own custom size shades. Or just pick up a new blind at your local hardware store; we found that Home Depot has a good selection of affordable roller shades.

With a mighty lift capacity of 4 lb (1.8 kg) with a 1" tube, these little wonders can take on a room full of windows with standard size roller shades and turn them into a co-ordinated motor driven system with our multi-channel remote controls.

Making miniature electronic devices is actually more expensive than standard sizes, but we have managed to keep the cost ($US 99 - motor, brackets, adapters only) within the same range of our other motors.

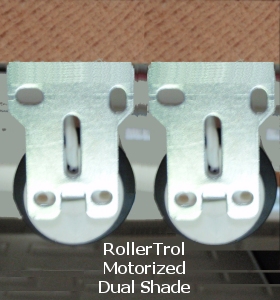

dual motorized shade using our mini motors They are also suitable for use in a dual shade system that makes it possible to deploy two different shade types, depending on light conditions and room usage.

If your home theater projection system requires blackout conditions, you could deploy opaque shade material.

If it's bright outside, you could deploy tinted solar film on one of the rollers. If you want privacy, you could deploy translucent shade material.

The 20 mm mini motors require about 1.25" (32 mm) of horizontal space (1" OD tubing + 1/4" roll wrap space), so you need less than 3 inches (76 mm) of frame depth to accommodate a dual roller system side by side. If you use the vertical offset roller arrangement, you can do it with a frame depth of approximately 2" (50 mm).

You can order our standard window blind starter kits in our online store and add a second motor:

Window Blind Motor Kits

Our remote controlled tubular motors can be set for reverse operation so that you can organize the motorized shade roller positions however you like.

The motors can be installed in either the left or the right side of the roller tube and each one can be programmed to go in the opposite direction when you hit the 'up' or 'down' switch on the remote.

You could easily set up a multiple window configuration where all the shades of one kind would retract simultaneously (going up), and all the shades of another kind could be deployed simultaneously (going down).

dual motorized shade horizontal configuration dual motorized shade configuration dual motorized shade configuration dual motorized shade configuration 14 channel remote control for window shades

Some typical dual shade arrangements are shown above (left to right): dual shades side by side, dual shades with vertical offset, dual shades with vertical opposed rollers, triple horizontal (go crazy with three shades!), 14 channel remote.

dual motorized shade configuration dual motorized shade configuration Each blind can be assigned a different channel, but you can also 'group' the shade operation. The first blind in each window can be assigned to one group, and the second shade of each window can be assigned to a different group.

So if you had, for instance, some tinted solar film material on your roller in each of 3 adjacent windows, you could make all three shades of that type deploy at once. Channel 1 might be a blackout shade, channel 2 might be solar film, and chanel 3 could be a translucent shade.

You can order our standard window shade starter kits in our online store and add a second motor:

Window Shade Motorized Starter Kits

We also have very affordable wireless sun sensor (or day/night) triggers, and wireless programmable timers.

We sincerely hope you enjoy using these advanced motors; if you have any questions, please feel free to contact us at any time!
