Blind Motor (no radio), 6lb lift

12 volt DC, 6 lb lift (2.7 Kg) when using 1.5" O.D. tube, no radio. For use with manual switches or home automation systems.

More details


$US 89.00 tax excl.

TMDC-12-25-07-34-NR

Availability: in-stock

12 volt tubular motor: 6 lb (2.7 Kg) lift when using 1.5" O.D. tube. Available by special order only.

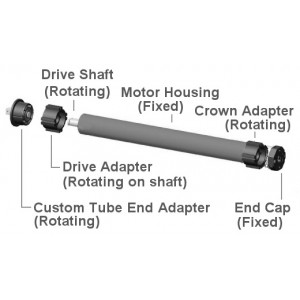

  • includes motor, tube adapters (1 3/8" - 35mm I.D.) and hanging brackets
  • control type: no radio, can use our DCC-1W-12-24 controller, or rocker switch
  • lift capacity with standard adapters: 6 lb (2.7 Kg) with 1.5" O.D. tube
  • torque: 0.7 Nm
  • speed: 34 rpm
  • nominal voltage: 12 v DC (safe for children and adults)
  • minimum voltage: 9.5 v DC
  • max turns in one direction: unlimited
  • upper/lower limits: 'learning type', set by controller positioning
  • current consumption: 800 mA (1200 mA at stall)
  • noise level: 39db
  • net weight: 272 g
  • accepts industry standard 1.5" OD Rollease® tubing: YES (1/16" wall, 1 3/8" ID)
  • minimum tube length: 12" (30.5 cm)
  • maximum tube length: unlimited
  • tested life: 30,000+ cycles
  • Stall Current: 3700 mA
  • No Load Speed: 34 rpm
  • Operating Voltage: 12v DC
  • Operating Current: 1200 ma
  • Measured Lift Capacity: 6 lb lift (2.7 Kg) with 1.5" OD (38mm) tube
  • Max Rotations: unlimited
  • Length Overall: 11" (280mm)
  • Length in Tube: 10.5" (267mm)
  • Drive Diameter: 1.378" (35mm)
  • Built-in Radio: no
  • Standby Current: 0 mA
  • Torque: 0.7 Nm
  • Weight: 7.8 oz (220g)
