24v Tubular Motor (no radio)

24 volt tubular motor: 6 lb lift

More details


$US 99.00 tax excl.

TMDC-24-25-07-34-NR

Availability: on back-order

24 volt tubular motor: 6 lb lift (2.7 Kg)

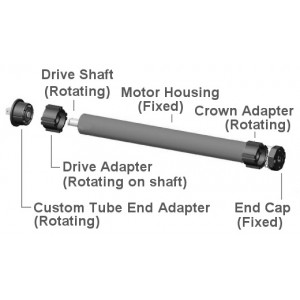

  • includes motor, tube adapters (1 3/8" - 35mm I.D.) and hanging brackets
  • control type: use external controller
  • lift capacity with standard adapters: 6 lb (2.7 Kg) with 1 1/2" O.D. tube
  • torque: 0.7 Nm
  • speed: 34 rpm
  • nominal voltage: 24 v DC (safe for children and adults)
  • minimum voltage: 17 v DC
  • max turns in one direction: unlimited
  • upper/lower limits: 'learning type', set by controller positioning
  • current consumption: 400 mA (600 mA at stall)
  • noise level: 39db
  • net weight: 272 g
  • accepts industry standard 1.5" OD tubing: YES (1/16" wall, 1 3/8" ID)
  • minimum tube length: 12" (30.5 cm)
  • maximum tube length: unlimited
  • tested life: 30,000+ cycles
