x10 Blind & Shade DIY Starter Kit

This is the kit you need to get started with your blind or shade software control system. It includes the PC software and the hardware required to set up the initial control system for a group of up to 8 blinds or shades (includes 1 tubular motor of choice, additional motors are purchased separately as required):

• You do not need to use the PC software if you just want a remote control system for various devices. The ActiveHome Pro interface acts as a stand-alone radio transceiver to receive control signals from the remotes, without being plugged into a PC!
• You can quickly set up your RF control system without connecting to a PC and add the software component later. The software adds functionality such as timers and response to designated conditions and sensors.

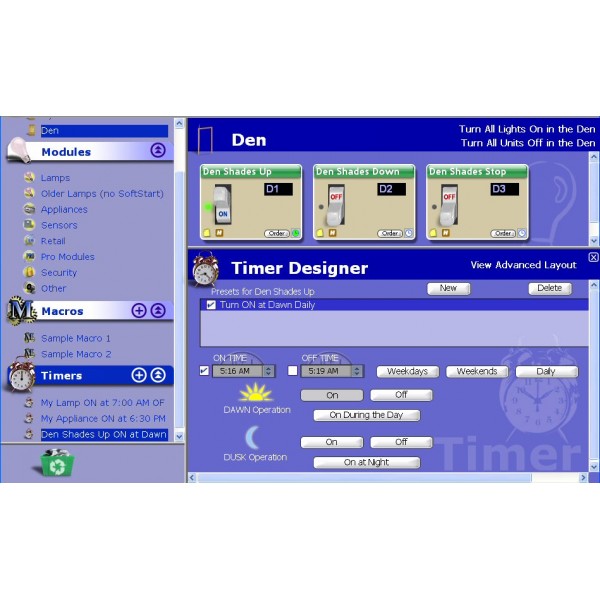

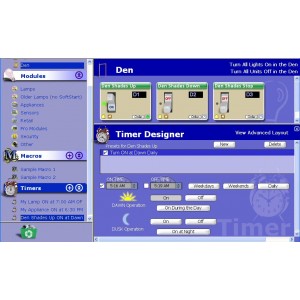

• The ActiveHome Pro Software runs on your PC and provides user friendly screens for organizing rooms and general functions, including timers and sensor reaction procedures. Blind & shade motor control is only a small part of what you can do! You then download your settings via USB to the microprocessor module and disconnect when done. You can also control blinds and shade motors directly from the screen, anywhere in your home, if you prefer.
• The stand-alone microprocessor module stores your software settings via USB, does not require PC to be connected. It issues commands over the powerline to control modules plugged in somewhere else in the home. It is typically located near a PC so it can be easily adjusted and re-programmed by the ActiveHome Software.
• The stand-alone microprocessor module also contains a radio receiver that accepts and re-transmits commands from external remote controls, including coffee table and wall mount wireless types (note the receiving antenna on far left of picture). Remote control radio signals travel easily through walls.
• Motor controller module with x10 blind relay modules and power supply operate up to 8 blinds simultaneously in a group. They can be concealed and tied into a single power bar anywhere you choose. The low voltage DC motor control power is safe for for children and adults, and you do not need to be an electrician to install this system.
• The self-adhesive wall switch with radio transmitter controls 1 group of blinds or shades (no wires required). Simply peel and stick the switch at an appropriate place on your wall. This provides manual over-ride of the blind group with UP, DOWN and STOP motor control functions. The included button battery easily lasts for several years.
• The coffee table remote control operates up to 5 groups of blinds that may or may not be in the same room. It can control other items such as lights, or anything else you have set up in your home.
• Choose the included tubular motor that fits your requirements
