Tubular Motor (no radio), 4 lb lift
DC Mini Series, 4 lb lift (1.8 Kg) when using 1" OD tube, no radio. For use with manual switches or home automation systems.
Categories
-
RollerTrol™ Motors
-
ALL RollerTrol™ DC Motors
- ♦ LIST of ALL DC RADIO MOTORS
- ♦ LIST OF ALL BUILT-IN BATTERY MOTORS, KITS & ACCESSORIES
- ♦ LIST of ALL DC NON-RADIO MOTORS
- ♦ 12v Motors: Standard Series: Radio: 35mm drive
- ♦ 12v Motors: Built-in Battery Series: Radio: 35mm drive
- ♦ 12v Motors: Built-in Battery Series: Radio: 18mm drive
- ♦ 12v Motors: Standard Series: No Radio: 35mm drive
- ♦ 12v Motors: Mini Series: Radio: 18mm Drive
- ♦ 12v Motors: Mini Series: No Radio: 18mm Drive
- ♦ 12v Motors: Maxi Series: No Radio: 47mm drive
- ♦ 12v Motors: Maxi Series: Radio: 47mm drive
- ♦ 24v Motors: Standard Series: No Radio: 35mm drive
- ♦ 24v Motors: Standard Series: Radio: 35 mm drive
- RollerNode™ Controllers
- Remote Controls
- DIY Starter Kits
- Motor Control Sensors
-
ALL RollerTrol™ DC Motors
- DIY Roller Blind & Shade Motor Kits
- DIY Skylight & Bottom-up Shade Motor Kits
- DIY Drapery & Curtain Motor Kits
- DIY Window/Skylight Openers
- Home Automation
- Solar Systems
-
Accessories
- Batteries
- DC Controllers
- Power Supplies
-
LED Light Systems
- ♦ LED 12v Flexible Strip Lighting - Warm White
- ♦ LED 12v DC Bulb Replacement Lights - Warm White
- ♦ LED 12v Recessed Ceiling Pot Lights - Warm White
- ♦ LED 12v Swivel Flood Lights - Warm White
- ♦ LED 12v Dimmers, Switches, Controllers
- ♦ LED 12v Marine and RV Lighting Systems
- ♦ LED AC Bulb Replacement Lights - Warm White
- ♦ LED Flashlights
- Irrigation Equipment
- Test Equipment
12 volt tubular motor: 4 lb (1.8 Kg) lift when using 1" OD tube

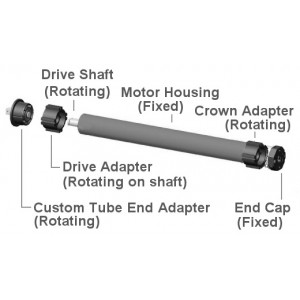

- includes motor, tube adapters (3/4" - 18 mm ID) and hanging brackets
- control type: no built-in radio, can use our external controls or your own
- lift capacity with standard adapters: 4 lb (1.8 Kg) with 1" O.D. tube
- torque: 0.3 Nm
- speed: 25 rpm
- nominal voltage: 12 v DC (safe for children and adults)
- minimum voltage: 9 v DC
- standby current: 18 mA
- max turns in one direction: unlimited
- upper/lower limits: 'learning type', set by controller positioning
- current consumption: 600 mA (1200 mA at stall)
- noise level: 38db
- net weight: 115 g
- accepts industry standard 1" OD tubing: YES (1/8" wall, 3/4" ID)
- compatible with Rollease®: yes
- accepts any round tubing: YES
- minimum tube length: 10" (25.4 cm)
- maximum tube length: unlimited
- tested life: 30,000+ cycles
- Weight: 115 g
- Torque: 0.3 Nm
- Standby Current: 0 mA
- Stall Current: 1200 mA
- Speed: 25 rpm
- Operating Voltage: 12v DC
- Operating Current: 600 mA
- Measured Lift Capacity: 4 lb lift (1.8 Kg) with 1" OD (25mm) tube
- Max Rotations: unlimited
- Length Overall: 9.5" (242 mm)
- Length in Tube: 9.2" (233 mm)
- Drive Diameter: 0.75" (18 mm)
- Built-in Radio: no
