DIY electronic evaluation kit of PDLC window glass film transparency

FAQ: Window and glass smart film with remote control - do you have a 12v DC electric remote control stick-on window film kit?

If you have ever wanted a method of electrical control of glass window transparency, our new stick-on film may be just what you're looking for. It also makes a great rear projection screen!

Please note that the quality of these wifi and electronic window films varies greatly; we advise that you should always buy from a trusted source or obtain samples to test before committing to a large purchase.

We have spent about 3 years thoroughly researching production facilities and testing production output, before we released our own RT smart film brand. Many manufactured types have much narrower transparancy ranges, higher voltage requirements and a high failure rate.

We are now offering this material for sale, pre-cut to size with electrodes installed. Please see our ElectricWindowGlassFilm.com website for pricing and detailed information. It operates on 12v DC (great for cars, boats, motorhomes, travel trailers, etc.), and we also have power supplies that plug into a regular AC outlet.

We have gone to great lengths to avoid these lower quality suppliers, and to keep the voltage input down to a safe 12v DC level, which also makes it compatible with our 12v DC roller shade and window opener motors (and all the wifi and microprocessor control systems we develop). The sample contained in our evaluation kit is cut from the very same high quality product we ship for general installation.

We have prepared an evaluation kit for those of you interested in learning how to work with this very useful electro-chromic material; please see our online store to purchase our smart film evaluation kit.

Here's a list of the kit contents:

  • a piece of 'smart film' (12 sq in)
  • preparation blade tool
  • connection wiring
  • copper electrode material
  • cloth for removing polymer from contact area
  • 12v power supply
  • screw terminal plug adapter
  • DC to DC up converter
  • terminal block
  • power switch
  • alligator clips

This system is compatible with our remote control systems, including the ability to extend control to your phone, tablet, or PC using wifi and the internet.

electronic remote control of window glass film transparency, window in transparent mode   electronic remote control of window glass smart film transparency, window in opaque mode

Simply cut it to whatever shape you need, apply it to your glass window or partition, and connect the wires - presto, you can now adjust the opacity of the window by electronic remote control. This material consumes 5 watts per square meter when switched on in full transparent mode; the blocked opaque mode uses no power.

Evaluation Kit: How to Connect Smart Film (PLDC) to 12v DC Controller

smart film evaluation kit working sample

1. Smart film evaluation kit working sample, 12 square inches


smart film razor blade preparation tool

2. Razor blade cutting tool for separating smart film layers.

Precautions: Sharp Razor Blades Can Cause Personal Injury and/or Material Damage

Please Note: Please be careful not to cut yourself; do this while sitting at a table, not on your knee. Please do not scrape the polymer material off, you will damage the conductivity (use rubbing alcohol or nail polish remover, as in step 8).

Please do not drill or puncture the material, it will cause problems.


There are 3 primary layer components, here is what to expect:

  • two semi-rigid plastic film layers with liquid polymer 'state change' layer sandwiched in between
  • there may also be a cellophane protective layer (peel off) on either or both sides
  • if it is the self-adhesive type, there will be a cellophane protective layer (peel off) on the 'sticky' side

Here is a representation of the 3 basic layers of smart film, showing both transparent and opaque modes. The thickness of the polymer layer bewtween the two plastic pieces has been greatly exaggerated for the purpose of this schematic representation, it is actually a very thin paste:

smart film cross-section showing transparent and opaque polymer alignment

It is the liquid polymer layer that changes its transparency state when a voltage is applied to each of the external semi-rigid plastic 'sandwich' layers. In its unpowered state, the long polymer molecules are randomized, resulting in an partially opaque film that you cannot see through. When enough voltage is applied, the molecules line up and the film becomes instantly transparent.

The copper strip electrodes are attached to the inside surface of each of the plastic outer layers of the 'sandwich'. It is important that the copper strips touch only the plastic piece they are attached to, and NOT the other plastic side or the sandwiched polymer material itself. You'll see in the following steps how this is accomplished.

With this latest generation of material, the transparency effect starts at around 20 volts and reaches a maximum state of transparency around 40 volts. Although our 12v kit uses a fixed inverter output of 40v (basic on/off effect), you can vary the output voltage of the inverter by screw adjustment to observe partial transparency. Damage to the film occurs at voltages above 60 volts, although our DC output will not go that high. Neverthless, please be careful if you try adjusting it (use a voltmeter).

If you don't have a voltmeter, our kit can be ordered with a very capable auto-off digital multimeter.


peel back protective layer both sides of smart film protective layer

3. Peel back protective cellophane layers on both sides. It does not need to be removed, you just need to peel back enough to expose the edge of the material, in preparation for attaching the copper terminal strips.


liquid cystal polymer sandwiched between plastic layers

4. The actual liquid crystal polymer that turns transparent is sandwiched between relatively stiff plastic layers; note how left thumb is holding back the protective cellophane layer for electrical terminal preparation


razor blade separates layers at edge

5. The next step is to use the razor blade to separate the two inner layers of semi-rigid layers at an edge. You just insert the blade between the layers and draw it along; the razor blade is actually touching the polymer material as you do this.

You'll be doing this from both outer edges, and you'll need to leave a short 'isolation' zone between the two prepared sections, as shown in the picture. The purpose of the isolation strip is to prevent a short circuit from occurring between the two copper electrodes that provide the power required to switch the smart film on and off.


razor blade removes outer plastic layer

6. After you have scored it, opening and spreading the outer stiff layers a little, the next step is to actually remove the outer plastic layer strip, exposing the polymer on top of the plastic layer on the other side. The polymer residue will be removed in the step, and the copper electrode will actually be attached to the inner edge of the plastic on the other side that has been exposed.

After removing the plastic strip section covering the first electrode location, flip it over and do the same for the other side. Each of the 2 copper strip electrodes must be on the inside of the 2 outer plastic 'sandwich' halves.


outer plastic layer strip removed each side

7. Here we show the first strip removed, exposing the polymer residue on the inside surface of the stiff plastic layer at the back. Both sides end up looking like this, and you'll need to develop a little bit of skill for this part, it is the most difficult part of the procedure.


polymer residue removed with cloth soaked with isopropyl rubbing alcohol or nail polish remover

8. Once both strips have been removed, clean the polymer residue with a cloth soaked with isopropyl rubbing alcohol or nail polish remover.


polymer residue removed showing clear plastic

9. This picture shows the polymer residue removed, exposing clear plastic layers. Note the isolation strip at the center.


copper electrodes connected both sides

10. Cut the copper electrode strips to size and stick them on the exposed plastic pieces, one on each side. You can wrap the copper around the outside edge. Do not let it touch the top layer, above the point where it is cut away.

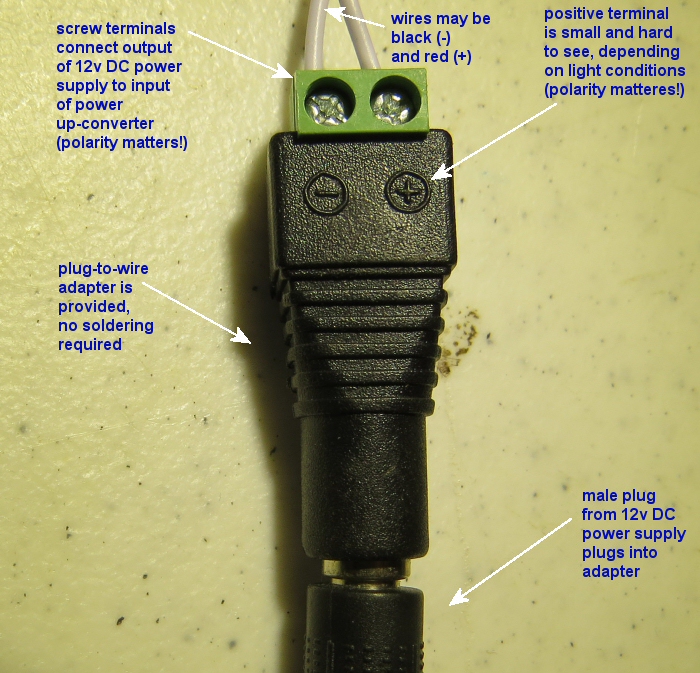

12v DC power supply wire adapter screw terminals

11. Now that the electrode connections are done, attention can be turned to the power. The first step would be to connect the output of the 12v DC power supply that is plugged into the AC mains outlet. Please don't plug it in to the AC outlet until you have connected and checked your connections all the way through to the smart film.

The 12v DC power supply output is connected to the voltage converter/booster via the screw terminals on the provided adapter, shown above. This adapter eliminates the need to cut and solder anything. PLEASE OBSERVE POLARITY!

The converter boosts the voltage from 12v DC to 36v DC. It is capable of outputting more than 36v DC, but anything in excess of that will not increase transparency. Please do not substitute a power supply that can put out more than 60v as that will damage the film.

Precautions: Shock Hazard & Material Damage

Please Note: You will not normally get a shock if you touch the inverter output, but you could get a minor non-lethal shock if you were touching a ground point elsewhere, like a cold water tap or the metal housing of a piece of electronic equipment. It would not be a good idea to stand with bare feet on a wet concrete floor in the basement while working with the power supply.

Please do not drill or puncture the material, it will cause problems.

Do not connect more than 60v AC or DC to the material, it will be damaged.

If using it outside, be sure to seal and cover it with plexiglass, polycarbonate or regular glass. Long term exposure to high humidity can damage the material.

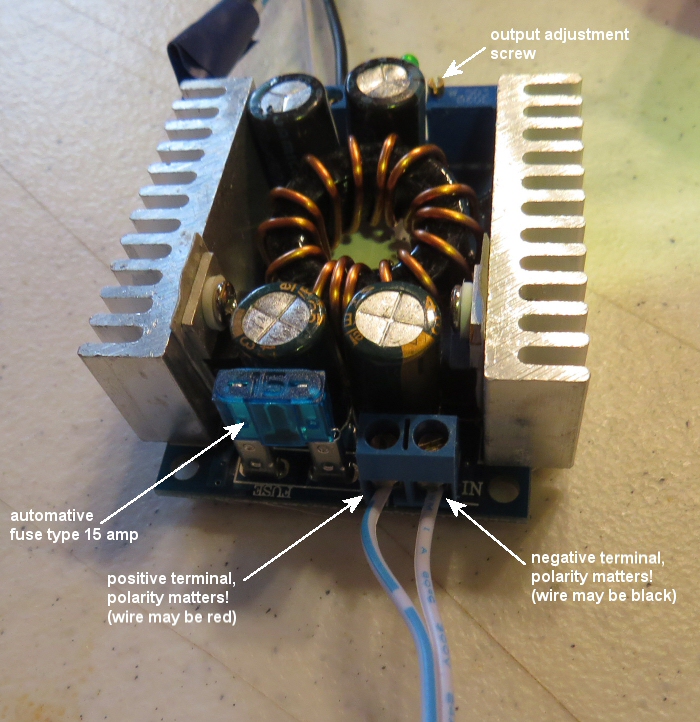

power supply converter 12v DC input terminals

After you have plugged the power supply plug into the adapter and attached some wire to the screw terminals, you would now connect the wires from that 12v power supply output adapter to the inverter input, as shown above, observing polarity.

Note that one side of the green screw adapter for the power supply output has a terminal marked with a + sign. Be sure that you connect that wire (usually red) to the screw terminal INPUT of the inverter marked +. Same goes for the negative side (-).

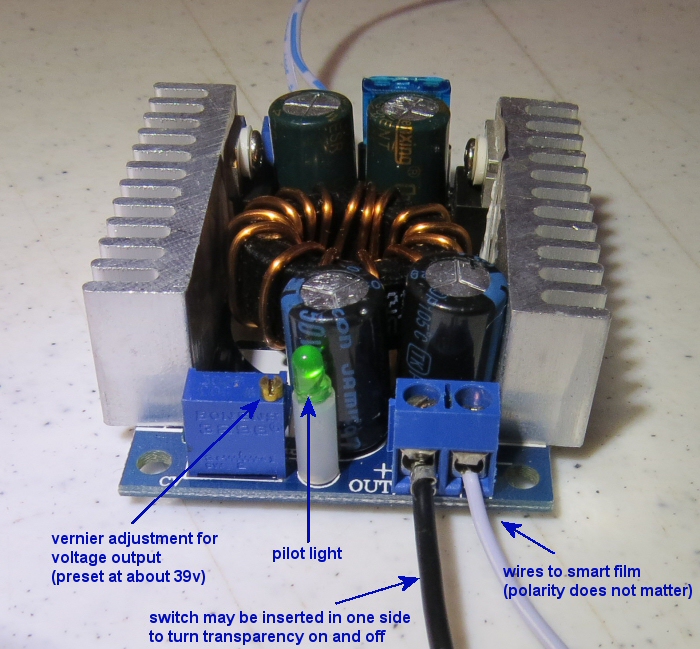

power supply inverter terminals

The output terminals of the inverter are shown in the picture above; these wires connect directly to the smart film, but you can also wire the switch into one side so that you can turn the transparency on and off. You can also adjust the voltage output by turning the screw, as shown in the picture. If you connect a voltmeter across the terminals, you can watch the voltage change as you adjust the output.

If you don't have a voltmeter, our kit can be ordered with a very capable auto-off digital multimeter.


ready to activate smart film

12. Now you are ready to activate smart film. In this picture we are simple touching the wires to the film electrodes, but you can also use the alligator clips (provided). Also, if you wire in the provide toggle switch to one of the wires (usually positive side), you can switch the transparency on and off.

If you unplug the power supply, it takes the output voltage a while to collapse, and you can see the transparency slowly fade to opaque (dimming effect)


smart film activated with 12v power supply

13. Presto!! smart film is activated with 12v power supply


There have been some exotic types of dichroic and electrochromic 'smart glass' made that can have the opacity controlled by applying a DC voltage, but these have been very expensive and the cost of retrofitting glass windows or partitions has been very high. Now there is a relatively affordable new solution that anyone can easily apply (DIY).

Solar shade film has also been in use for many years, but it has a fixed transparency, whereas this glass film material can be adjusted from its transparent state to its blacked out state simply by the flick of a switch.

The technology was actually developed in the 1980's, but this newer generation has brought it to the truly practical stage. We think this is one of the most exciting window treatment technologies to emerge in a long time; please stay tuned to this page for product release information, coming soon.

At the current state of development, it’s not entirely see-through when it’s in the transparent mode (7% haze), and it doesn't block 100% of the light in opaque mode, but it is still a very useful material that will only improve with time. It consumes 5 watts per square metre when switched on to full transparent mode (blocked opaque mode uses no power). Voltage can be adjusted for varying degrees of transparency; it reaches maximum transparency at around 40v AC or DC.

Please see our online store for our smart film evaluation kit.

We sincerely hope you enjoy using these advanced technology systems and motors; if you have any questions, please feel free to contact us at any time!
