using Alexa to control blinds and shades

Remote Control Motors for Blinds, Shades, Window/Skylight Openers, etc
(by Adrian Biffen, Senior Partner)


Mermet® Custom Shades: Our DIY shade and blind motor kits are popular, but for those of you wanting a more complete solution, we are now offering high quality shade and blind fabrics from Mermet®, mounted on standard tubing, with hem bar. Our automated remote control shade motors just slide in and lock in place - no fuss no muss! Please check our Custom Blinds and Shades website for info.

Please Note: Do you already have an existing automation system?
Please see the shade and blind automation section further down about our interface products.

3 Easy Steps to Full Automation, Preserving Your Initial Investment

We have been working with home automation since 1972, when the x10 protocol first appeared. When we started RollerTrol™, our company policy was set to support as many home automation systems as possible.

We have now refined this policy to simplify the 3 easy levels of automation for controlling our shade/blind motors, skylight/window openers, and many other devices.

A key feature of this implementation is that your initial investment in remote controls is preserved and will continue to function, regardless of how far you want to take the automation.

remote control blinds, shades, window/skylight openersLevel 1 - RollerTrol™ Simple Remote Controls:
We designed our system so that you can start out with our simple multi-channel wall mount and hand held remotes for our shade/blind motors and skylight/window openers, then upgrade later to a more advanced system.

Many of our clients find that these simple remotes are all that is needed, but your investment is preserved regardless of any upgrade decision. Any remotes you purchase will continue to function, even if you upgrade to higher levels of automation later.

You can control individual motors with these remotes and/or create groups.

RF and IR blaster learns remote control signals for blinds, shades, window/skylight openersLevel 2 - BroadLink® RF-IR Blaster Automation Hub:
Here is a very easy phone app system that can 'learn' RF signals from our remote controls. Take a look at our very affordable new blind and shade hub, operated by Android and IOS apps.

The system also has IFTTT event triggering (if-this-then-that), event timers, and IR learning for TV and other media. Your remote controls from Level 1 will continue to operate.

This system is very capable and may well be the only automation system you will ever need. Save a lot of $$$ and convert all your old phones and tablets into powerful WiFi home automation control consoles!

You can control individual motors with this hub and/or create groups.

HASS learns RF and IR remote control signals for blinds, shades, window/skylight openers Level 3 - Home Assistant™ - Finally! The end of incompatible systems:
We are now supporting the excellent Home Assistant (HASS) software that is written in Python. It runs on any platform in the background (as a web server), including the Raspberry Pi. Your controls and phone apps from Level 1 and Level 2 will continue to function with this system.

Any browser equipped device on your network can use the interface; this system acts as your own private cloud. There is no required outside connection to the internet, but it is an option.

Please see this article about how HASS turns a Raspberry Pi into a powerful low cost home automation controller for our BroadLink RF-IR blaster system. It provides integration with many other control systems such as Wink®, Wemo®, SmartThings®, Vera®, Z-Wave®, Bluetooth®, etc (over 500 devices and counting!).

You can control individual motors with HASS + BroadLink hub and/or create groups.

Voice Control of Everything: Alexa® + BroadLink® + Home Assistant™

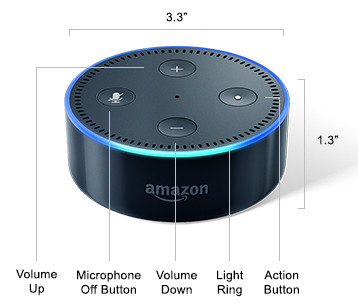

Amazon Echo Dot Alexa voice control system

We are often asked about integrating our blind and shade motors with the Alexa® voice command system, and the Home Assistant system makes it easy to do this because it creates a bridge between Alexa and the BroadLink hub. This is done by using a clever emulation of the Hue system, which has native support in Alexa.

The BroadLink® hub is not only capable of learning RF control signals for blind motors and window openers, it is also an excellent IR code learner too, for controlling all your Netflix streaming, TV, Blueray, DVD and other media systems. With Alexa you can add voice control to this capability.

You can very easily set up a sequential process for some application in your home, with the ability to chain events to a single button press. For example, you may need a process for initiating a home theater system: lower blackout blinds, dim lights, turn projector on, deploy projector screen, activate audio system, select Netflix, etc.

You can then assign that control function to be triggered by Alexa, using your voice to execute a series of events that are pre-programmed into the BroadLink® RF-IR blaster hub. For more information, please see our Alexa® integration article.

Already Have An Existing Home Automation System?

group transmitter for bind, shade motors triggered by relaysFor those of you with existing systems such as Insteon®, Zigbee®, Control4®, Lutron®, Crestron®, Nest®, Bluetooth®, etc, we have a relay controlled group transmitter that can address our radio motors with OPEN/CLOSE/STOP commands. All you need is a relay module with 3 relays to trigger these control signals. The group transmitter can control as many motors as you like simultaneously as a group.

For those of you with Z-WAVE® systems, we have a Z-Wave relay trigger module for blinds, shades, window/skylight openers that can be used to trigger the group transmitter.

It is also sold as a complete ZWave control kit for window openers and blinds that includes the group transmitter, z-wave trigger module and 12v power supply.

This article explains how to use our interface modules:

RollerTrol™ Z-Wave Motor Control

If you want to have group + individual control of our motors, you might want to consider using our BroadLink hub system, as mentioned towards the top of this page, as it will give you far more flexibility at a much lower price than z-wave.

The BroadLink hub offers control of our G series blind & shade motors, the older R series motors, our skylight/window openers, our smart film, our drapery motors, any IR controlled devices such as TV and sound systems, and many other devices such as fans, LED lighting, etc. The BroadLink hub can even learn x10 radio commands, in case you have a few of those old modules in your home.

If you are interested, you can purchase the BroadLink or Z-Wave interfacing products in our DIY online automation store.
